Filling Machine Description

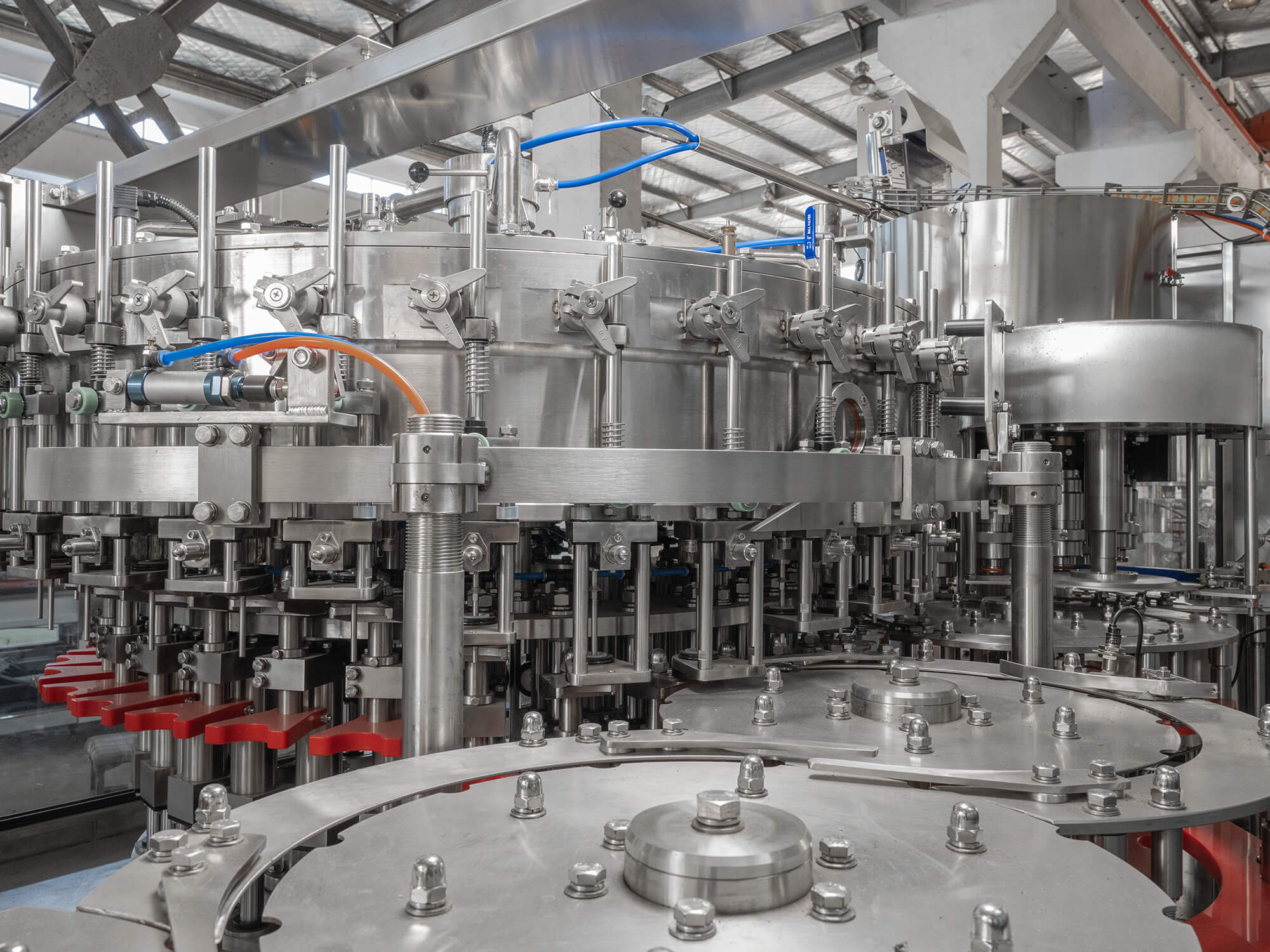

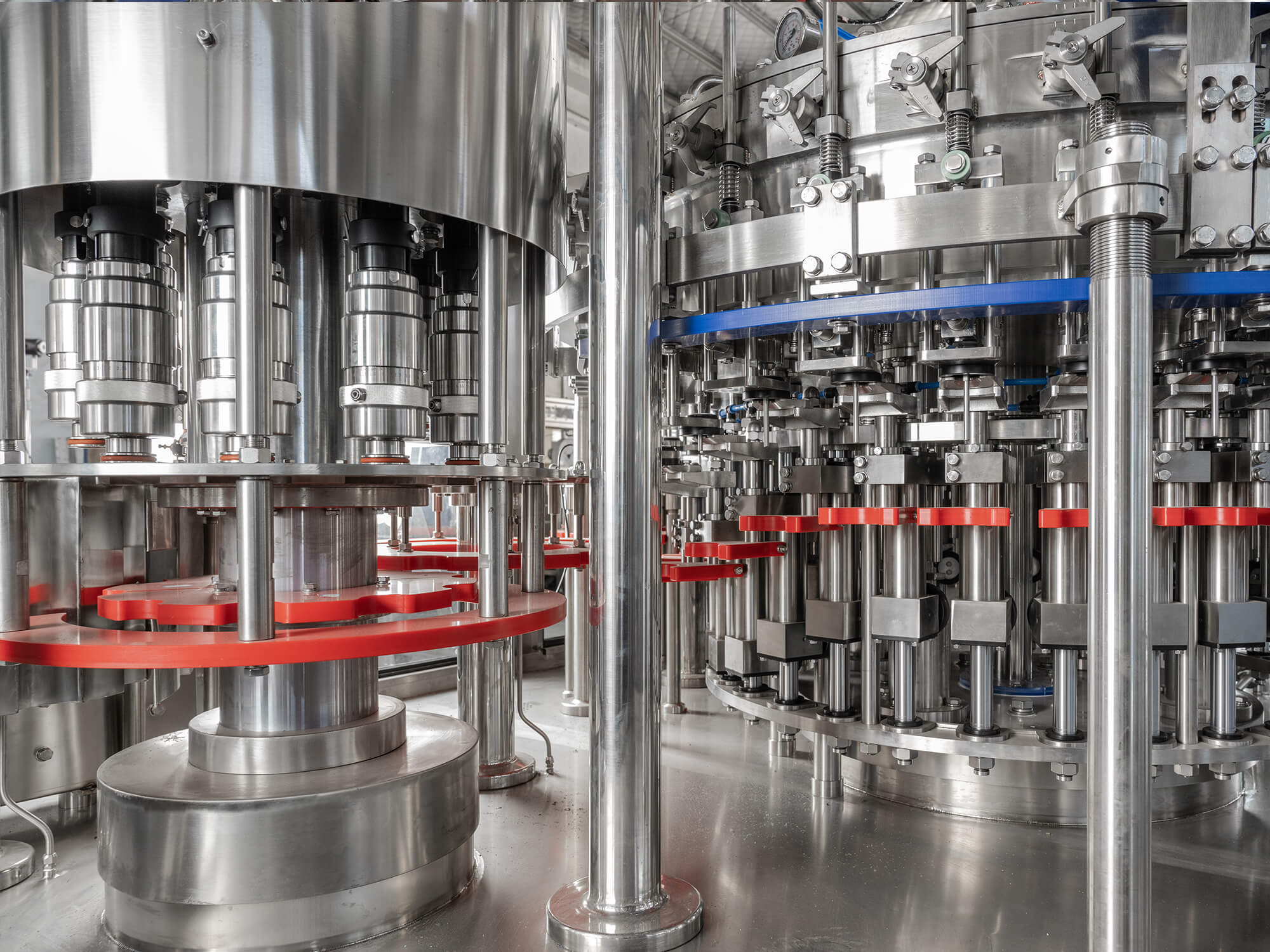

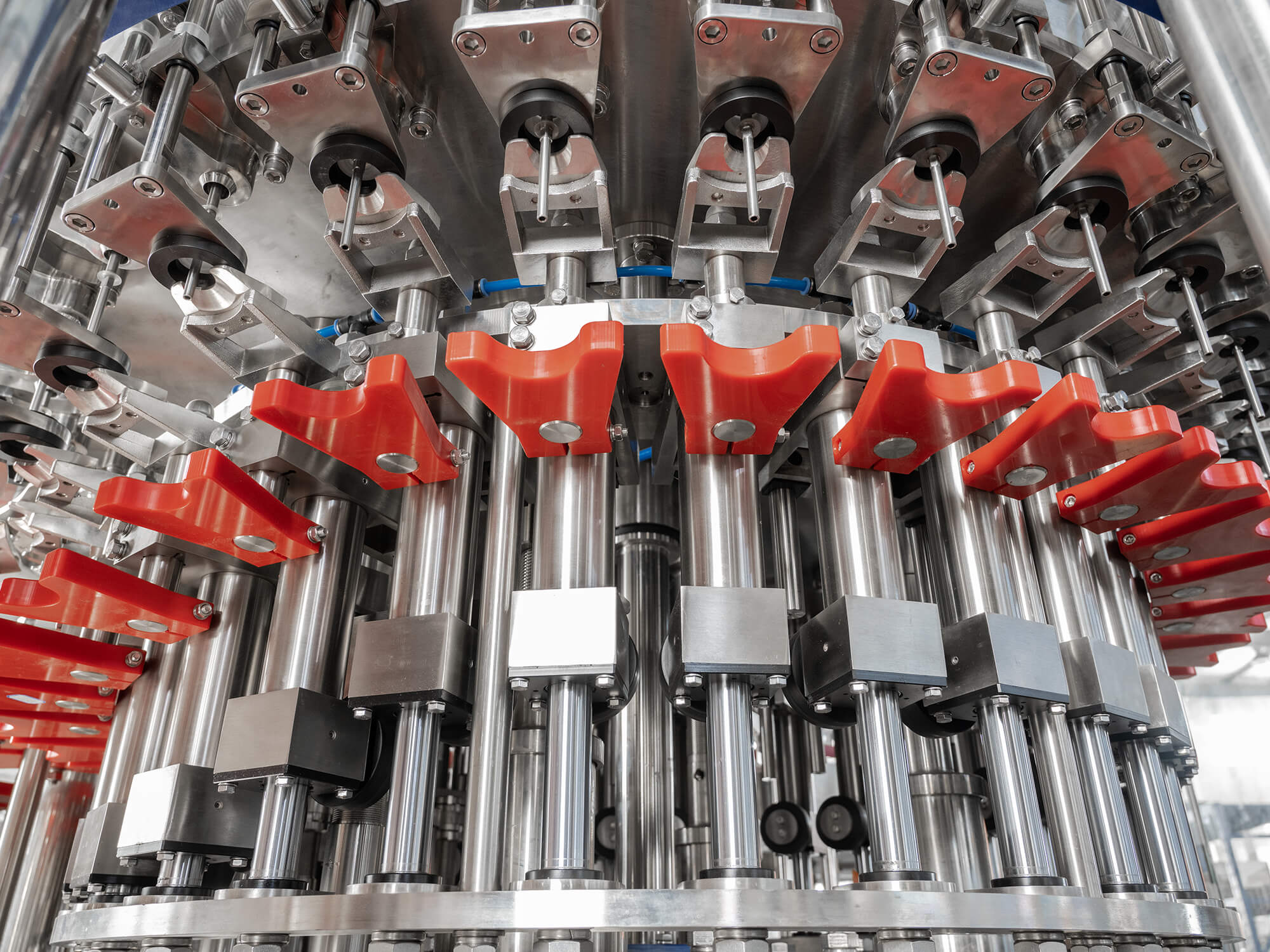

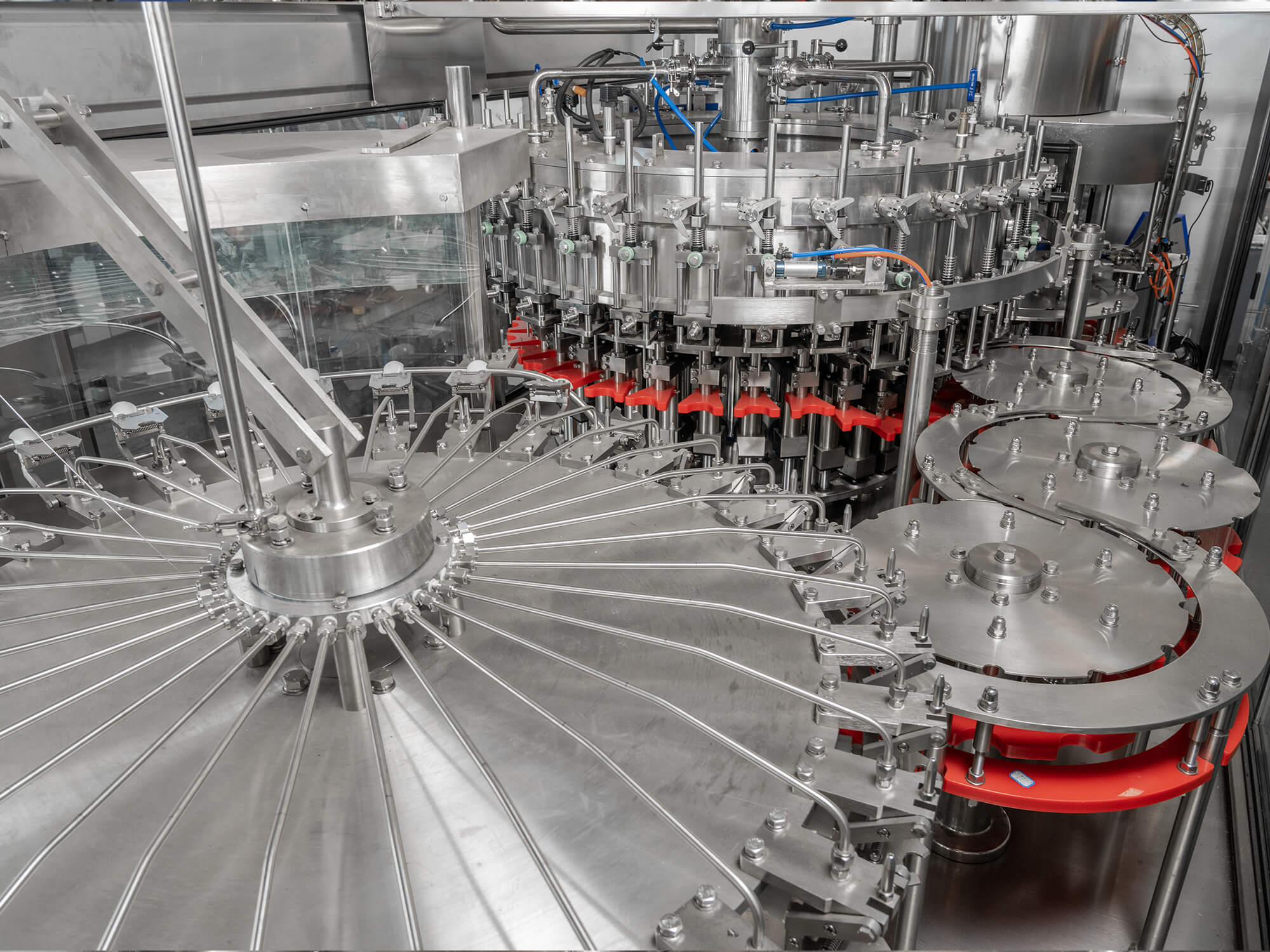

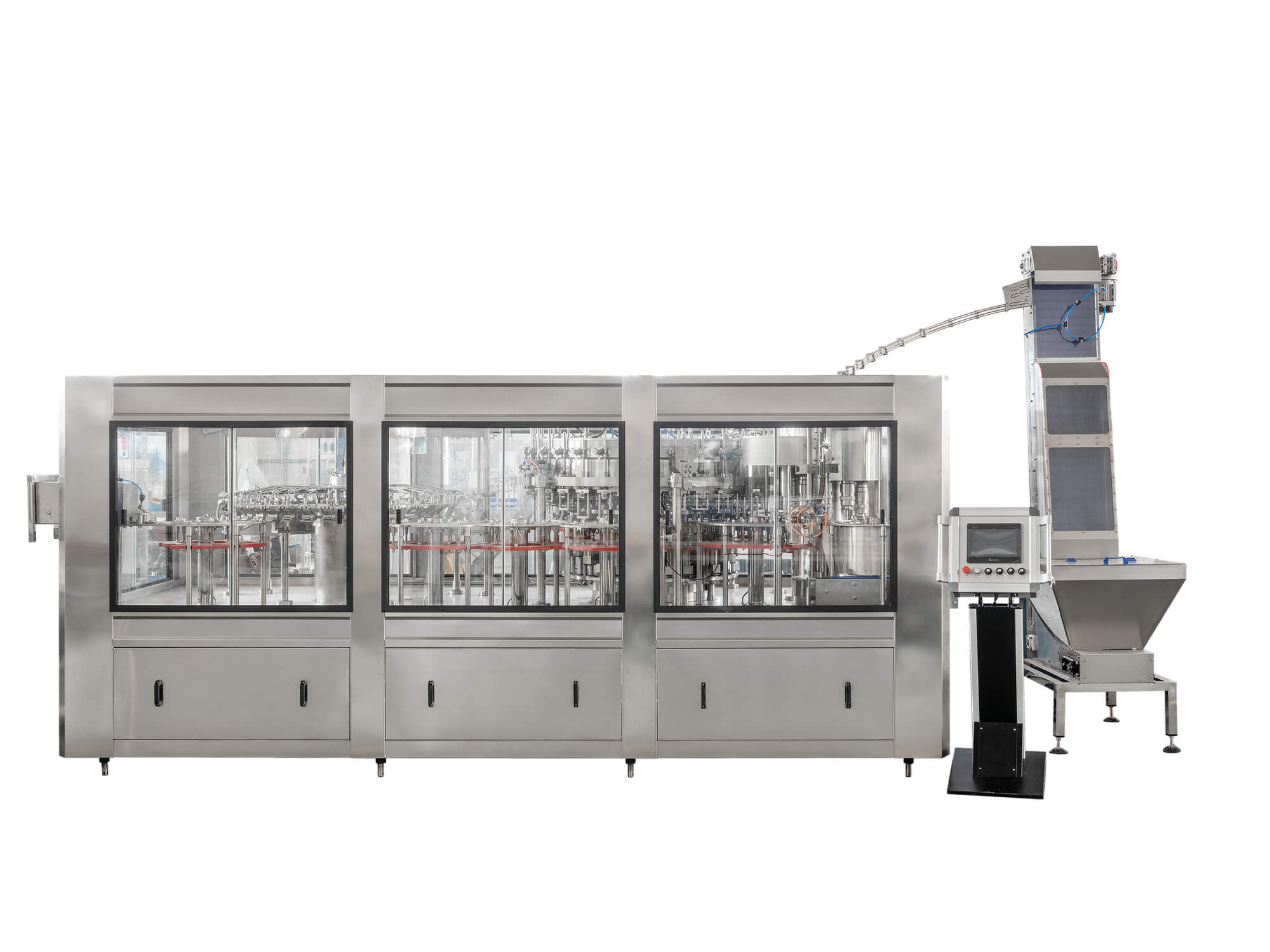

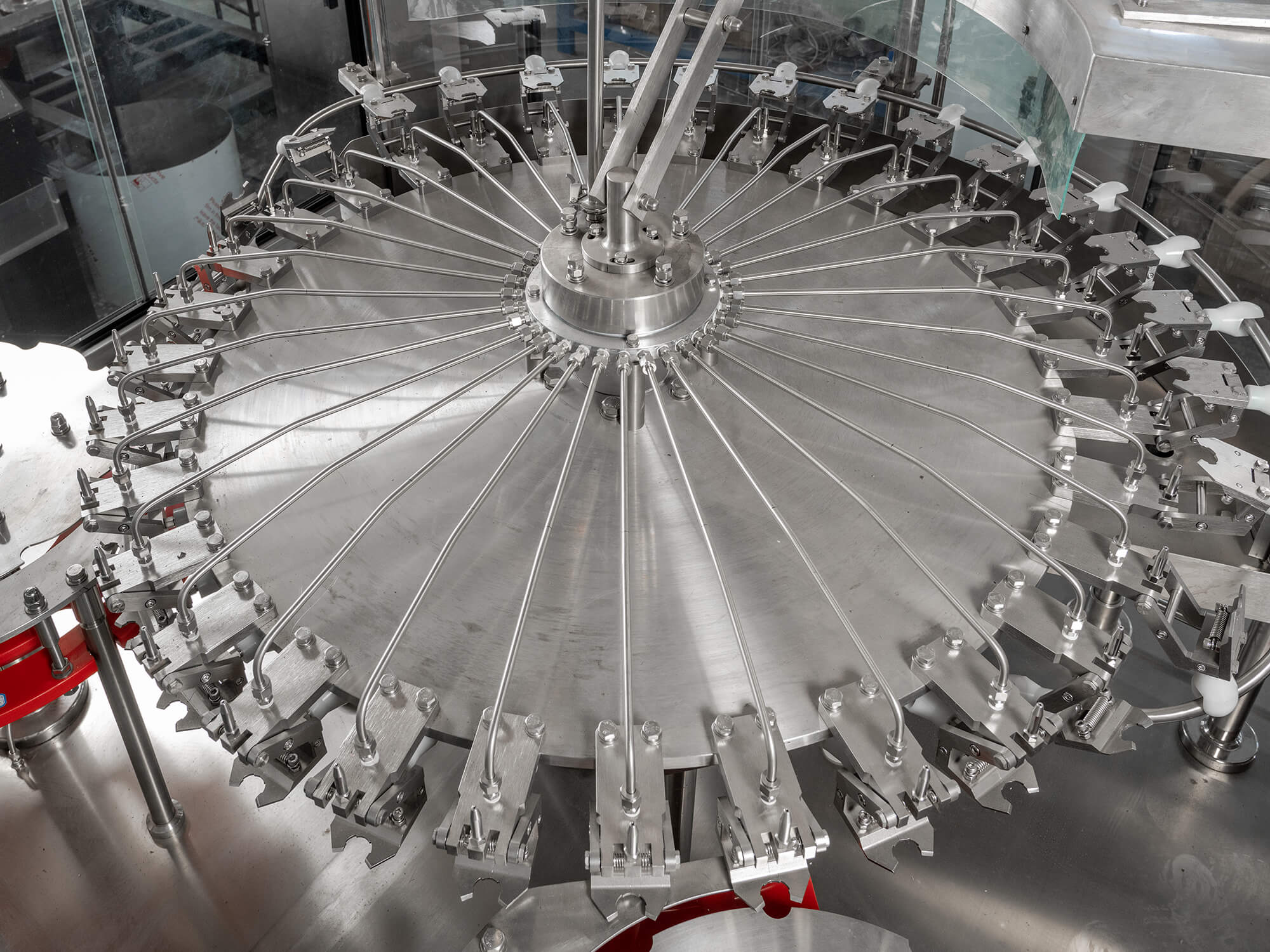

This Juice filling machine integrates bottle sterilizing, bottle washing, juice filling and capping into one monobloc, and the three -five processes are carried out full automatically. It is used in the hot filling of juice and tea ,beverage. It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.
Technical Specification
Model: | RCGF8-8-4 | RCGF14-12-5 | RCGF16-16-5 | RCGF20-20-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-15 |
Washing head | 8 | 14 | 16 | 20 | 24 | 32 | 40 | 50 |
Filling head | 8 | 12 | 15 | 20 | 24 | 32 | 40 | 50 |
Capping head | 4 | 5 | 5 | 6 | 8 | 10 | 12 | 15 |
Production capacity 500ml B/H | 2500-3500 | 3500-4500 | 6500-7500 | 9000-10000 | 10000-12000 | 12000-14000 | 15000-17000 | 18000-22000 |
Air source pressure | 0.4MPa | |||||||
Rinsing pressure | 0.2-0.25MPa | |||||||
Bottle height | 150-330MM | |||||||
Bottle diameter | Φ50-Φ100MM | |||||||
Rinsing water consumption(Kg/h) | 500 | 600 | 700 | 800 | 1500 | 1800 | 2500 | 3000 |
Filling way | Hot Filling | |||||||
Power(Kw) | 2.5 | 3 | 3.3 | 3.8 | 4.2 | 5.6 | 6.4 | 9.8 |
Overall size (L*W*H) (mm) | 1950*1450*2350 | 2260*1600*2350 | 2350*1900*2350 | 2900*2200*2400 | 3300*2300*2400 | 4100*2850*2400 | 4250*3200*2400 | 5750*3750*2400 |
Weight(Kg) | 2500 | 2800 | 3000 | 4000 | 5000 | 6500 | 8000 | 9000 |
